De Novo Small ORF Discovery with Entropy Analysis • GeneScout

GeneScout is an R package for identifying hidden genes in non-coding DNA using statistical information theory. It implements sliding window entropy scanning, Shannon entropy estimation, and Kullback–Leibler divergence to discover potential small open reading frames (sORFs) directly from genomic sequences without requiring prior annotation.

Most existing bioinformatics tools for codon usage bias analysis (like coRdon and Biostrings) are designed for analyzing known genes from annotated GTF/GFF files. They are not optimized for discovery in non-coding regions.

GeneScout fills this gap by focusing on de novo small ORF discovery in large genomic regions.

Here are the key features of the tool has:

Sliding window entropy scanning: This implementation efficiently scan millions of base pairs to find regions with unusual codon usage patterns
Shannon entropy calculation: This quantifies the randomness of codon distributions within genomic windows.
Kullback-Leibler divergence: Compare regions to organism-specific codon usage profiles.
ORF detection: Identifies candidate open reading frames within low-entropy regions
Reference profile construction Builds organism-specific codon usage profiles from known coding sequences

Installation

# install development version
devtools::install_github("danymukesha/GeneScout")

Quick Start

library(GeneScout)

# Create a reference profile from known genes
fasta_tp53 <- system.file("extdata", "TP53.fasta.gz", package = "GeneScout")
fasta_apoe <- system.file("extdata", "APOE.fasta.gz", package = "GeneScout")

known_genes <- c(
  APOE = read_fasta(fasta_apoe)[[1]],
  TP53 = read_fasta(fasta_tp53)[[1]]
)
known_genes
#> $APOE
#> 2075-letter DNAString object
#> seq: GGGAGCCGGCCCAGCTGGGGGCCCAGGTGGTGCACC...GGACAGACAAGCAGGCGTAGGATGGGCAATTGGATT
#>
#> $TP53
#> 21089-letter DNAString object
#> seq: CTTTTGAAAGCACTGTGTTCCTTAGCACCGCGGGTC...CTTTCTTACTAGGGAATGCCAAACACTCTCCCCAGG

ref_profile <- create_reference_profile(read_fasta(fasta_apoe))
ref_profile
#>         AAA         CAA         GAA         TAA         ACA         CCA
#> 0.021952221 0.015496277 0.019114222 0.008485817 0.011295637 0.029686270
#>         GCA         TCA         AGA         CGA         GGA         TGA
#> 0.013522761 0.013438225 0.029329005 0.006455944 0.031556129 0.012601921
#>         ATA         CTA         GTA         TTA         AAC         CAC
#> 0.003533409 0.010628405 0.002837999 0.004980587 0.009265763 0.016774383
#>         GAC         TAC         ACC         CCC         GCC         TCC
#> 0.019753275 0.007066818 0.016304403 0.036226750 0.023483935 0.024179345
#>         AGC         CGC         GGC         TGC         ATC         CTC
#> 0.018390633 0.007179533 0.016388939 0.017554330 0.007123175 0.029103575
#>         GTC         TTC         AAG         CAG         GAG         TAG
#> 0.012714636 0.013550940 0.017667044 0.028267271 0.034337770 0.007818585
#>         ACG         CCG         GCG         TCG         AGG         CGG
#> 0.005704176 0.015665350 0.005704176 0.005704176 0.031302521 0.013663655
#>         GGG         TGG         ATG         CTG         GTG         TTG
#> 0.041545481 0.026820093 0.009096691 0.030353502 0.021200453 0.009848459
#>         AAT         CAT         GAT         TAT         ACT         CCT
#> 0.009989352 0.009153049 0.009181227 0.004980587 0.007734049 0.024122988
#>         GCT         TCT         AGT         CGT         GGT         TGT
#> 0.014800867 0.017779759 0.010712941 0.003533409 0.016191688 0.012573743
#>         ATT         CTT         GTT         TTT
#> 0.007790407 0.012742815 0.010572048 0.013466404

df <- GeneScout::codon_frequency_df(ref_profile)

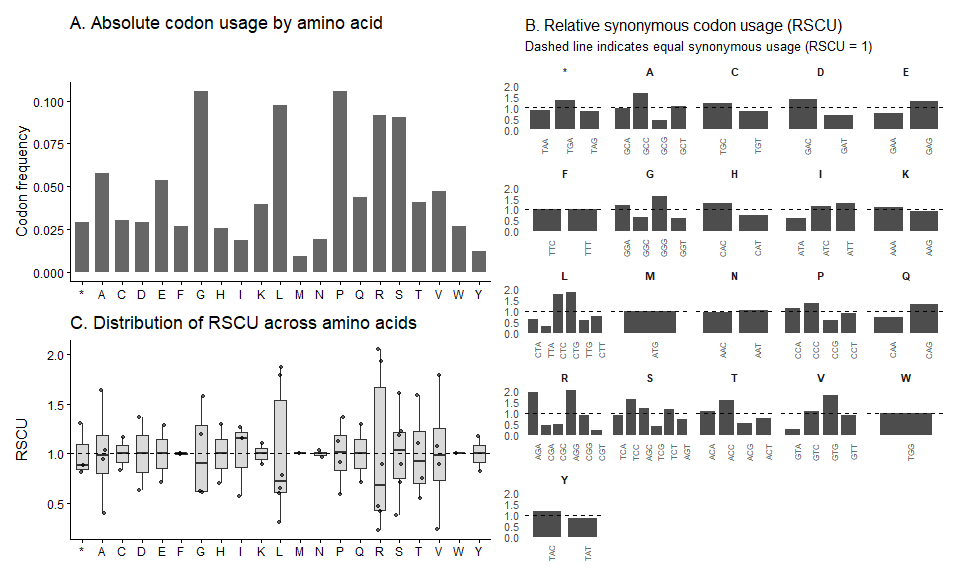

plot_codon_usage_panel(df)

# ggsave(filename = "inst/apoe.png",
#        plot_codon_usage_panel(df),
#        height = 8, width = 12)

# Scan a genomic sequence
fasta_chr19 <- system.file("extdata", "chr19.fasta.gz", package = "GeneScout")
sequence <- read_fasta(fasta_chr19)[[30]]
sequence
#> 61764-letter DNAString object
#> seq: TCCTACTGGGCATGCCCCTGGCTTTACCCAGAGGGG...CACTCTGACGCACACTACGTCTGGAGCCACAGAGTG

scan_result <- sliding_window_scan(
  sequence,
  window_size = 300,
  step_size = 30,
  reference_profile = ref_profile
)
scan_result
#> GeneScout Sliding Window Scan Results
#> =======================================
#> Number of windows: 2049
#> Sequence range: 1 - 61740 bp
#>
#> Entropy Statistics:
#>   Mean Shannon Entropy: 5.216 bits
#>   Std. Dev. Shannon Entropy: 0.224 bits
#>   Min Shannon Entropy: 3.226 bits
#>   Max Shannon Entropy: 5.582 bits
#>
#> KL Divergence Statistics:
#>   Mean KL Divergence: 0.879
#>   Std. Dev. KL Divergence: 0.361

# Detect entropy peaks and find candidate ORFs
peaks <- entropy_peak_detection(scan_result, threshold = 0.1)
candidates <- find_candidate_orfs(sequence, scan_result, peaks)

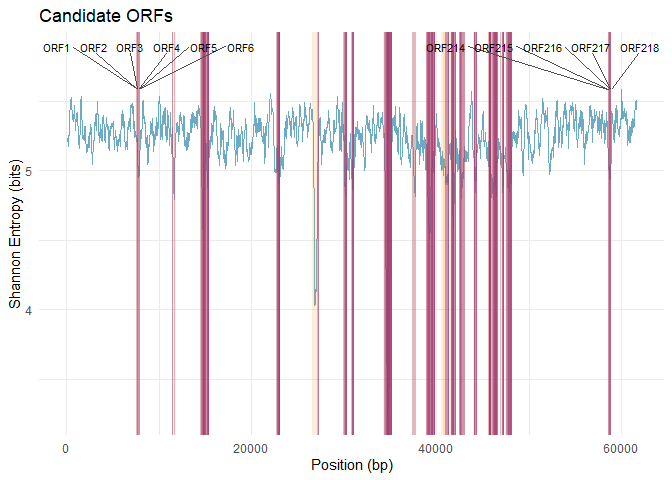

plot_candidate_orfs(scan_result, candidates, peaks)
#> Warning: ggrepel: 207 unlabeled data points (too many overlaps). Consider
#> increasing max.overlaps

Theory

Shannon Entropy

$H = -\sum_{i=1}^{64} P(i) \log_2 P(i)$

High entropy (~6 bits): Random codon usage → non-coding DNA
Low entropy (~3-4 bits): Biased codon usage → potential gene/coding regions

Kullback-Leibler Divergence

$D_{KL}(P \| Q) = \sum_{i} P(i) \log_2 \left( \frac{P(i)}{Q(i)} \right)$

Compares the observed codon distribution ( $P$ ) to the reference distribution ( $Q$ ). There are different use cases, few of them would be:

De novo gene discovery: to find potential coding regions in unannotated genomes
Small ORF identification: for discovering small peptides in non-coding regions
Comparative genomics: comparing codon usage between organisms
RNA-Seq integration: validating candidate ORFs with expression data
Evolutionary studies: to analze codon usage patterns across lineages

Acknowledgments

Built on top of Bioconductor’s excellent Biostrings, and coRdon packages.
